System range · IQF

IQF tunnel freezers and preparation equipment

Freezing comes before freeze-drying. Tunnel freezers with aerodynamic bed plates and variable-frequency fans deliver high-quality IQF — also a standalone frozen-food line. Blanching, washing, peeling, cutting, pasteurizing, grinding and mixing complete the line.

INNOTECH SD-series IQF tunnel freezers quick-freeze pieces individually at 500, 1000 or 1500 kg/h, either as the pre-freezing step before freeze-drying or as a standalone frozen-food line. Aerodynamic bed plates and frequency-converter fans keep the result consistent, and washing, peeling, cutting, blanching and pasteurizing machines complete the line.

Request sizing
IQF tunnel freezer
Why tunnel IQF

Individually quick frozen,
ready for the next step

The bed-plate configuration, the overall freezer design and high-performance fans with frequency converters work together to give a consistent IQF result, whether the product goes on to freeze-drying or is sold frozen.

Natural appearance

Pieces freeze individually instead of clumping, so they keep their shape and look.

Energy efficiency

Frequency-converter fans let airflow follow the load.

High yield

Continuous belt freezing from 500 to 1500 kg/h.

Food safety

Hygienic construction for food-contact service.

ModelFreezing capacityCold consumptionInstalled power
SD500500 kg/h81 kW19 kW
SD10001000 kg/h174 kW35 kW
SD15001500 kg/h225 kW49 kW

Figures are catalogue ratings; final values per technical agreement.

Auxiliary equipment

Everything before
and after the freezer

A line is only as good as its preparation. These machines complete a fruit, vegetable or snack line around the freezer and dryer.

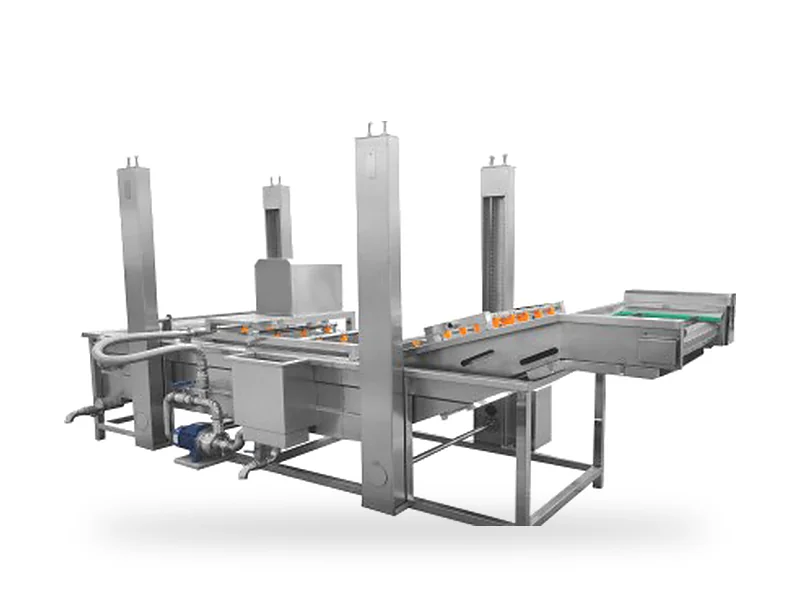

Washing machine
Preparation

Washing machine

Removes soil and debris from produce before processing.

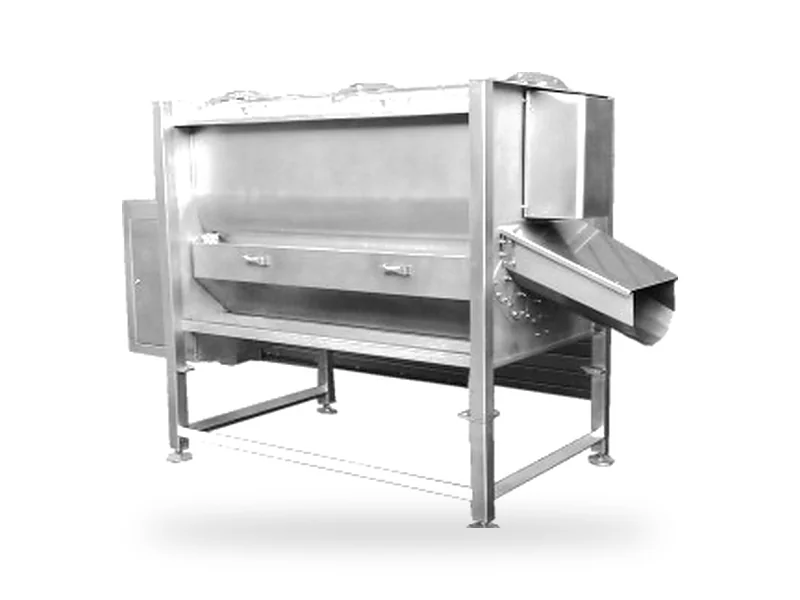

Peeling machine
Preparation

Peeling machine

Removes skins from fruit and root vegetables.

Cutting machine
Preparation

Cutting machine

Cuts produce to a uniform size for even freezing and drying.

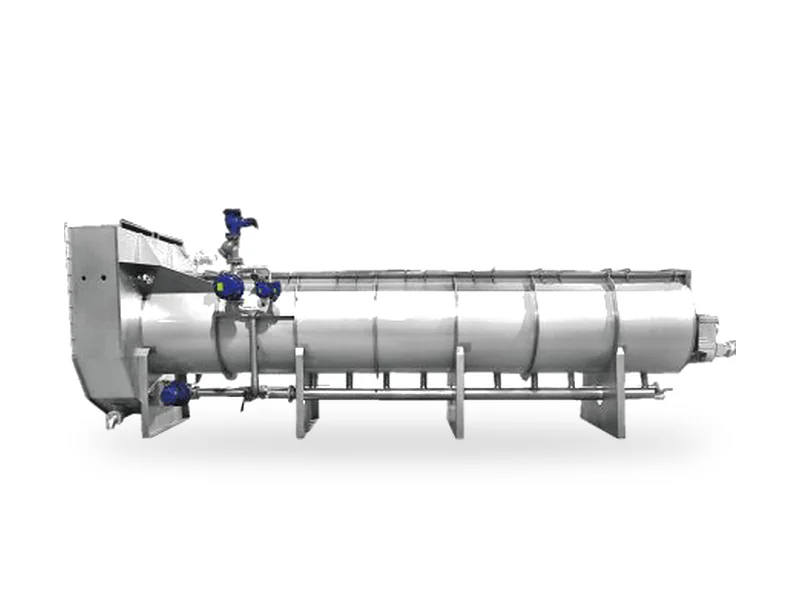

Blanching machine
Heat treatment

Blanching machine

Short heat treatment that helps hold colour and flavour.

Pasteurization
Heat treatment

Pasteurization

Controlled heat treatment for microbial safety.

Jacketed pot
Heat treatment

Jacketed pot

Cooking kettle for sauces, fillings and pre-cooking.

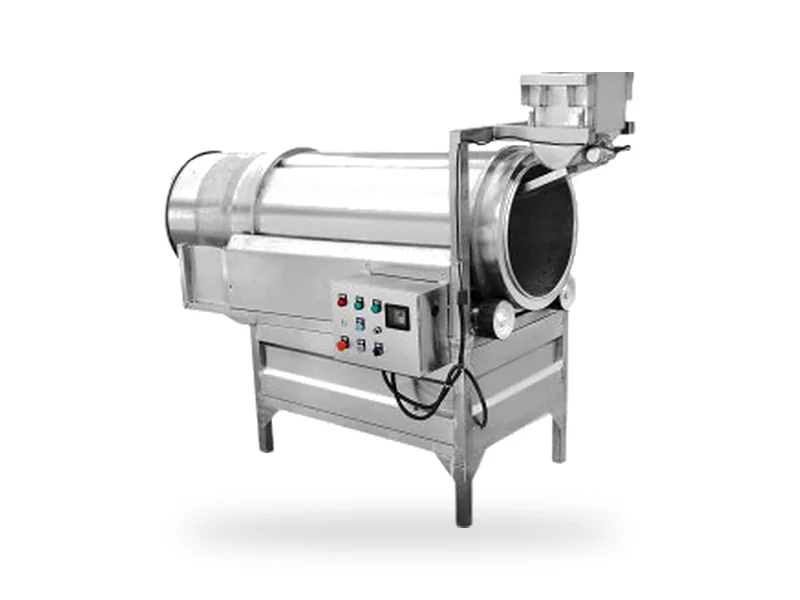

Flavoring machine
Finishing

Flavoring machine

Drum that coats snacks evenly with seasoning.

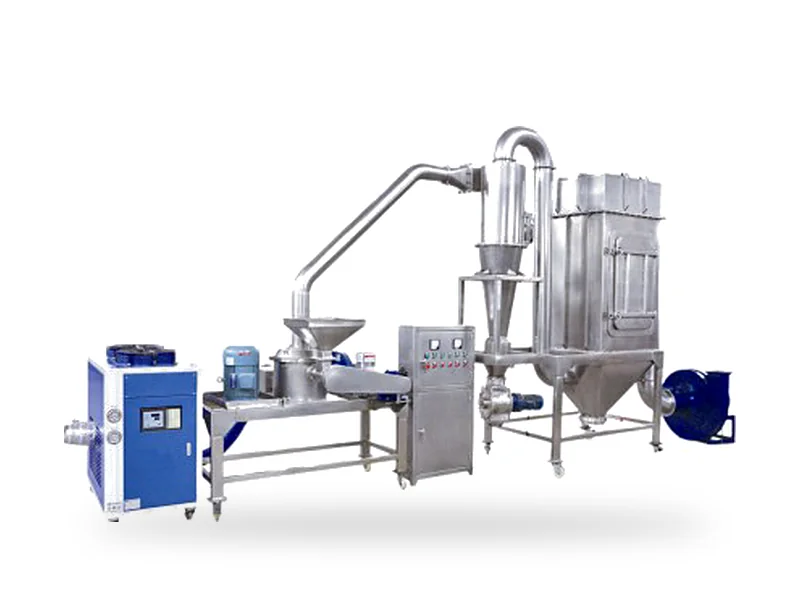

Grinding machine
Finishing

Grinding machine

Mills dried product into powder for drinks and ingredients.

Material buggy
Handling

Material buggy

Stainless-steel cart for moving product between stations.

Where the IQF tunnel sits in a line

  1. Preparation: washing, peeling and cutting to a uniform size.
  2. Heat treatment (if needed): blanching to hold colour and flavour, or pasteurization.
  3. IQF freezing: SD500–SD1500 tunnel, 500–1500 kg/h.
  4. Next step: vacuum freeze-drying (see fruit & vegetable freeze dryers), or packing as frozen product.

Frequently asked questions

Freezing comes before freeze-drying. In an IQF tunnel each piece freezes individually instead of clumping, so it keeps its shape and look and goes onto the freeze-dryer trays ready for the next step.
Pick by hourly throughput: SD500 freezes 500 kg/h (81 kW cold consumption, 19 kW installed power), SD1000 freezes 1000 kg/h (174 kW, 35 kW) and SD1500 freezes 1500 kg/h (225 kW, 49 kW).
Yes. The tunnel also works as a standalone frozen-food line, so the same freezer can supply product that is sold frozen.
Fans with frequency converters let airflow follow the load, and the bed-plate configuration and freezer design work together for a consistent result.
Yes. Tell us the product and target output and we lay out freezing, drying and preparation (washing, peeling, cutting, blanching, pasteurizing, grinding) as one line. A complete-line supply includes process design and line layout.

Planning a complete line?

Tell us the product and target output, and we will lay out freezing, drying and preparation as one line.
